PR Series Square Light

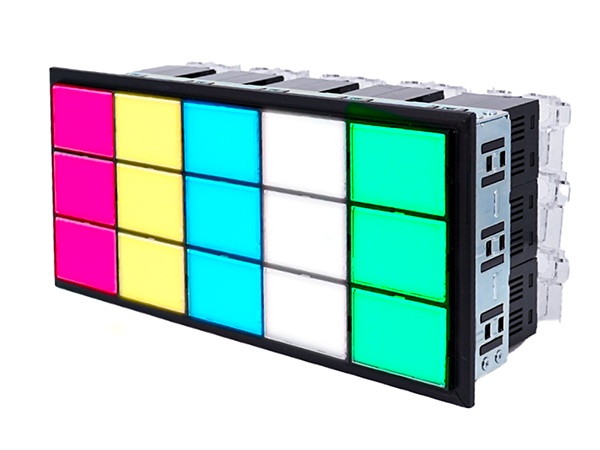

집합표시등 Square Light 30×30 mmSL33

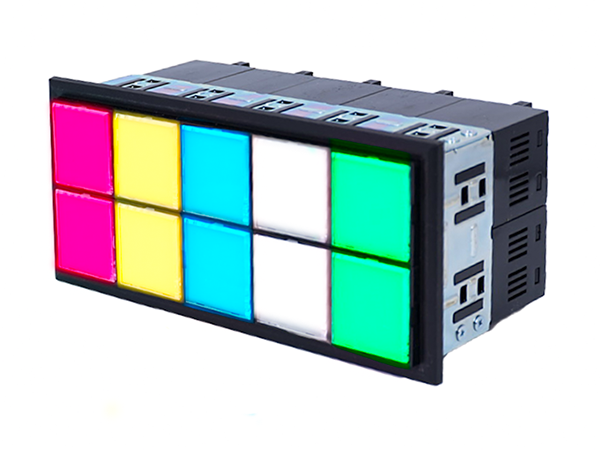

집합표시등 Square Light 30×40 mmRL34
제품 특징 Product features
정밀한 LED 광원 설계와 구조적 완성도를 기반으로 한 본 제품은, 산업 현장에서 요구되는 다양한 설치 환경에 유연하게 대응하며 일관된 시인성과 안정적인 작동 성능을 제공합니다.
모듈형 구조와 사용자 친화적인 설계 요소들을 통해 설치와 유지보수가 간편하며, 작업 효율성과 현장 대응력을 동시에 향상합니다.

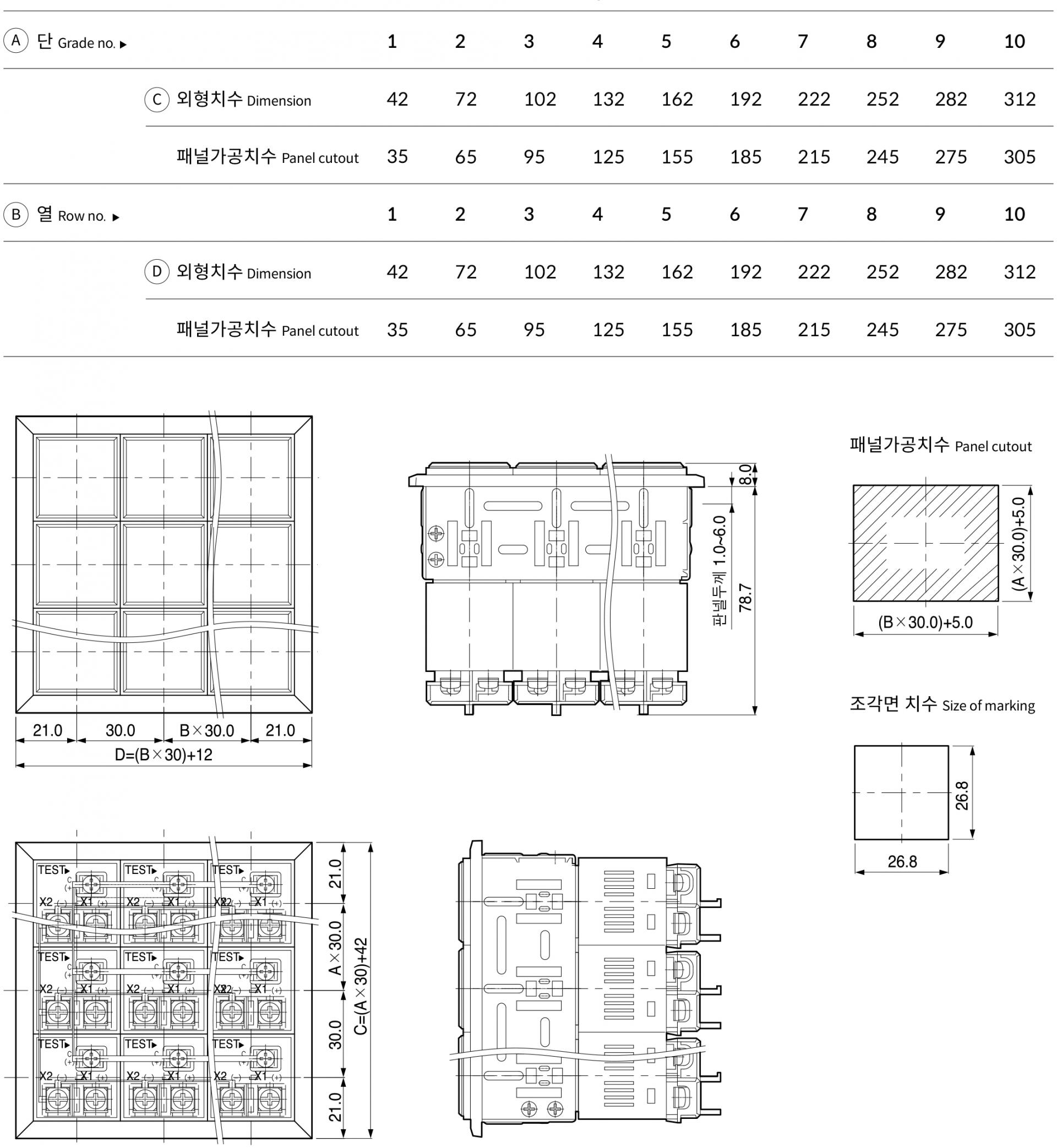

구조 및 외형치수 (정사각형 집합표시등) Structure and external dimensions (square light)

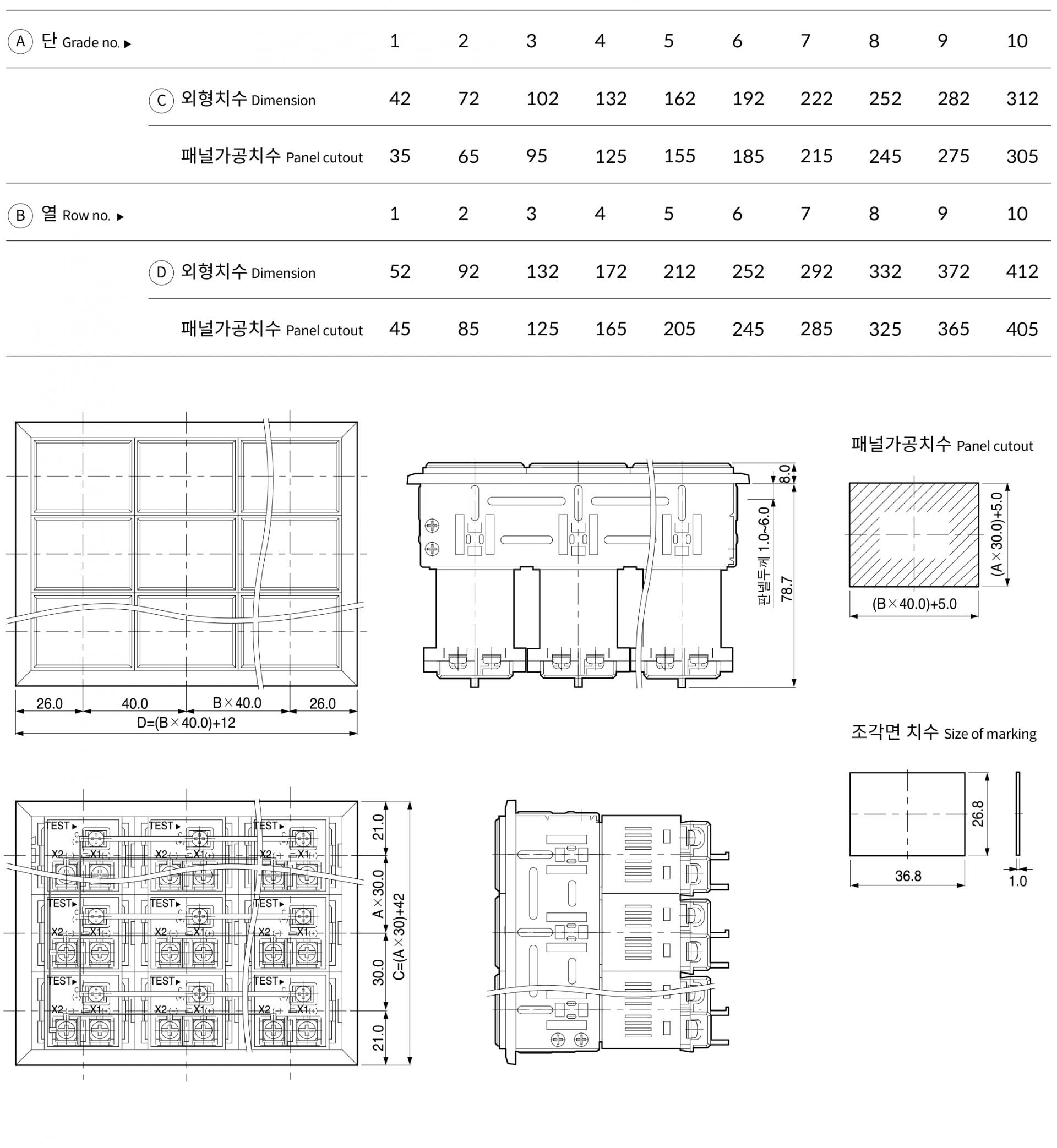

구조 및 외형치수 (직사각형 집합표시등) Structure and external dimensions (rectangular light)

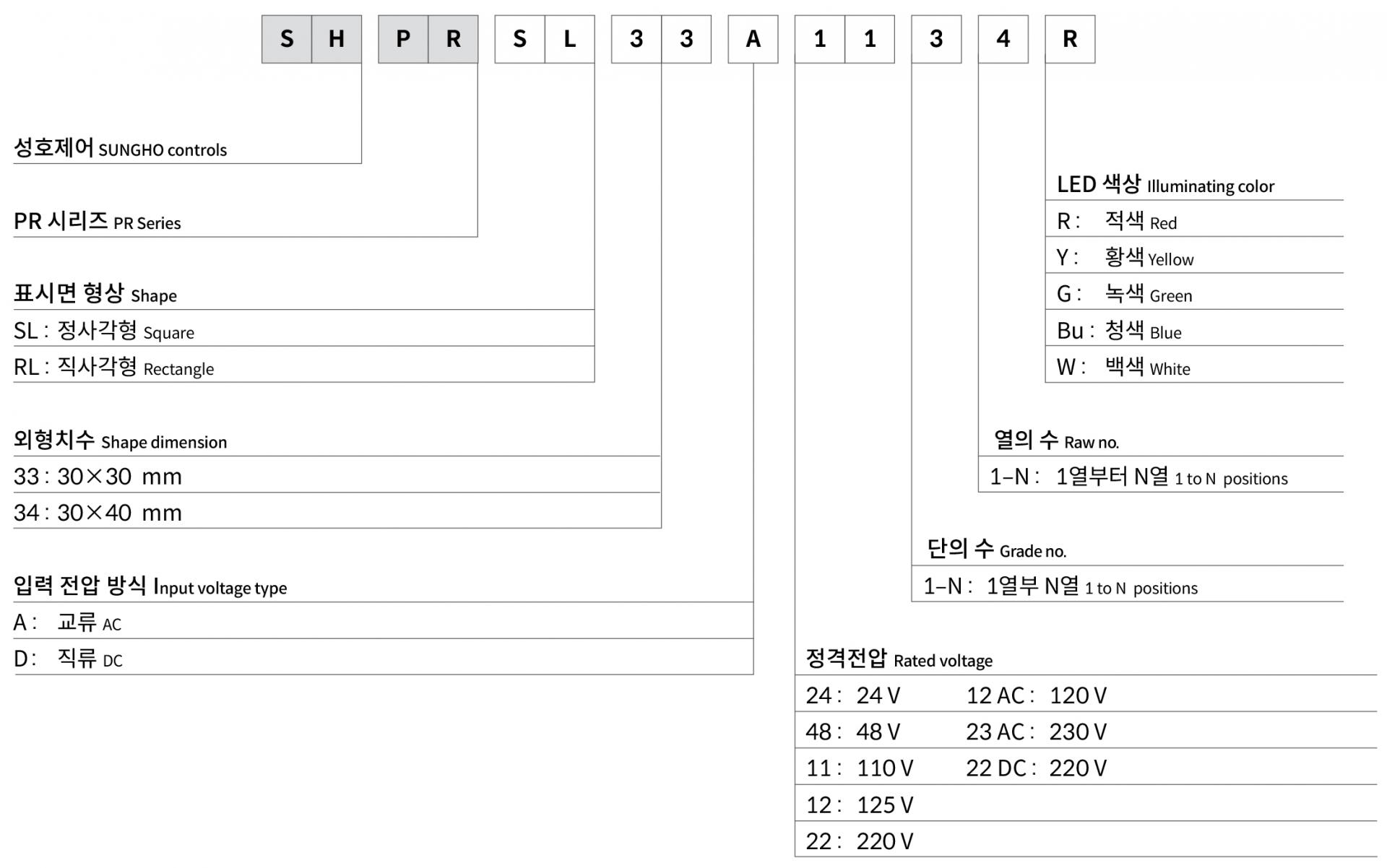

주문코드 Ordering code construction
아래 유형 코드를 참고하면, 적합한 제품을 신속하게 찾을 수 있습니다.Understanding the type code keys below will help you quickly identify the correct product for your needs
주의사항
조작및신호(누름버튼).pdf
주소. 인천광역시 부평구 안남로402번길 25(청천동)
전화. 032-504-2822 I 팩스. 032-504-2825
메일. sh@controlswitch.com
개인정보처리방침 이용약관COPYRIGHT SUNGHO CONTROLS CO., LTD. ALL RIGHTS RESERVED.
주소. 인천광역시 부평구 안남로402번길 25 (청천동)
PR 시리즈 집합표시등
PR Series Square Light
집합표시등 Square Light 30×30 mm
SL33
집합표시등 Square Light 30×40 mm
RL34
제품 특징 Product features
정밀한 LED 광원 설계와 구조적 완성도를 기반으로 한 본 제품은, 산업 현장에서 요구되는 다양한 설치 환경에 유연하게 대응하며 일관된 시인성과 안정적인 작동 성능을 제공합니다.
모듈형 구조와 사용자 친화적인 설계 요소들을 통해 설치와 유지보수가 간편하며, 작업 효율성과 현장 대응력을 동시에 향상합니다.
구조 및 외형치수 (정사각형 집합표시등) Structure and external dimensions (square light)
구조 및 외형치수 (직사각형 집합표시등) Structure and external dimensions (rectangular light)
주문코드 Ordering code construction
아래 유형 코드를 참고하면, 적합한 제품을 신속하게 찾을 수 있습니다.
Understanding the type code keys below will help you quickly identify the correct product for your needs
